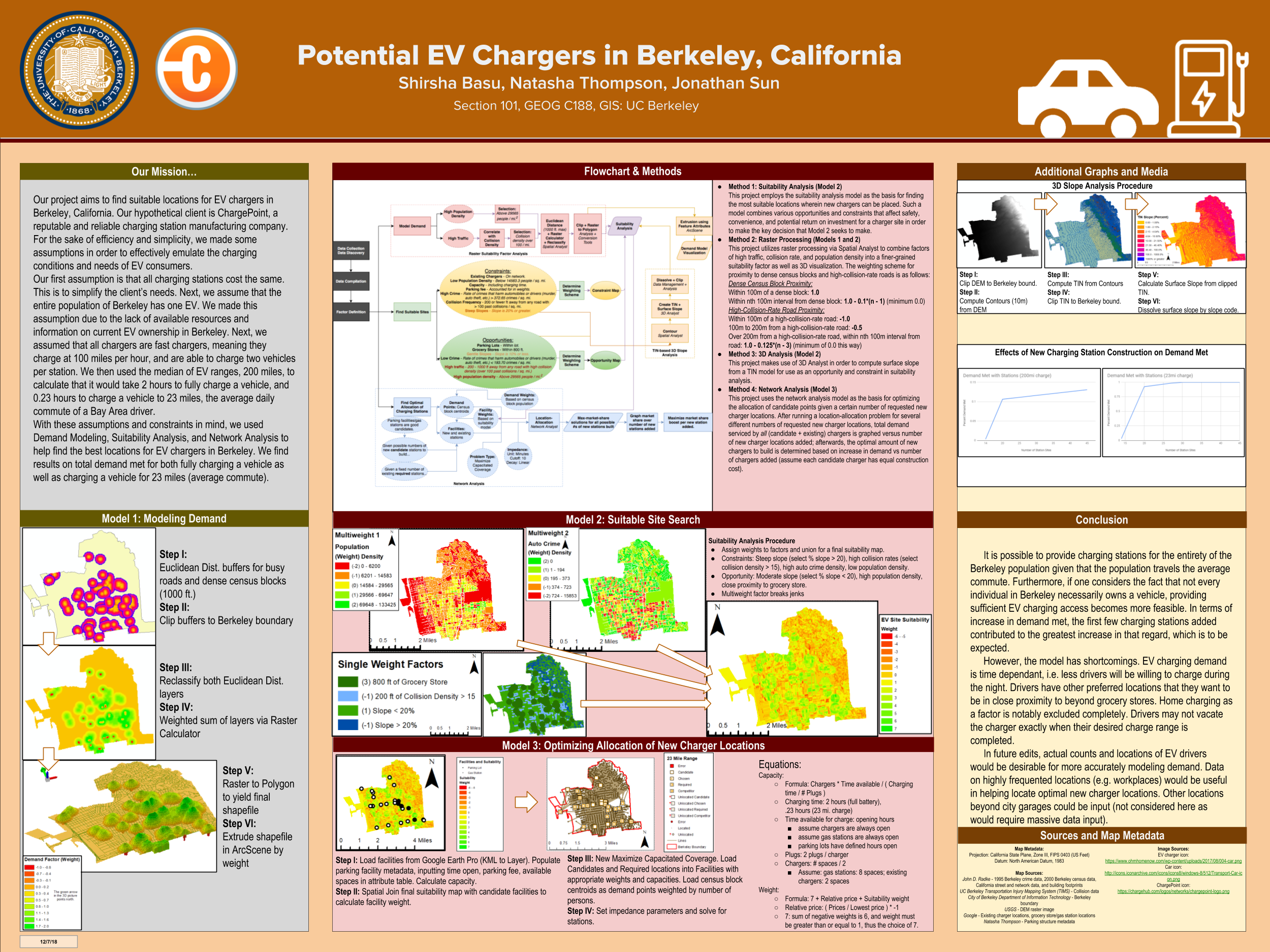

Proposal for Future EV Charging Locations.
Our project aims to find suitable locations for EV chargers in Berkeley, California. Our hypothetical client is ChargePoint, a reputable and reliable charging station manufacturing company. For the sake of efficiency and simplicity, we made some assumptions in order to effectively emulate the charging conditions and needs of EV consumers. Our first assumption is that all charging stations cost the same. This is to simplify the client’s needs. Next, we assume that the entire population of Berkeley has one EV. We made this assumption due to the lack of available resources and information on current EV ownership in Berkeley. Next, we assumed that all chargers are fast chargers, meaning they charge at 100 miles per hour, and are able to charge two vehicles per station. We then used the median of EV ranges, 200 miles, to calculate that it would take 2 hours to fully charge a vehicle, and 0.23 hours to charge a vehicle to 23 miles, the average daily commute of a Bay Area driver. With these assumptions and constraints in mind, we used Demand Modeling, Suitability Analysis, and Network Analysis to help find the best locations for EV chargers in Berkeley. We find results on total demand met for both fully charging a vehicle as well as charging a vehicle for 23 miles (average commute).
This project employs the suitability analysis model as the basis for finding the most suitable locations wherein new chargers can be placed. Such a model combines various opportunities and constraints that affect safety, convenience, and potential return on investment for a charger site in order to make the key decision that Model 2 seeks to make.

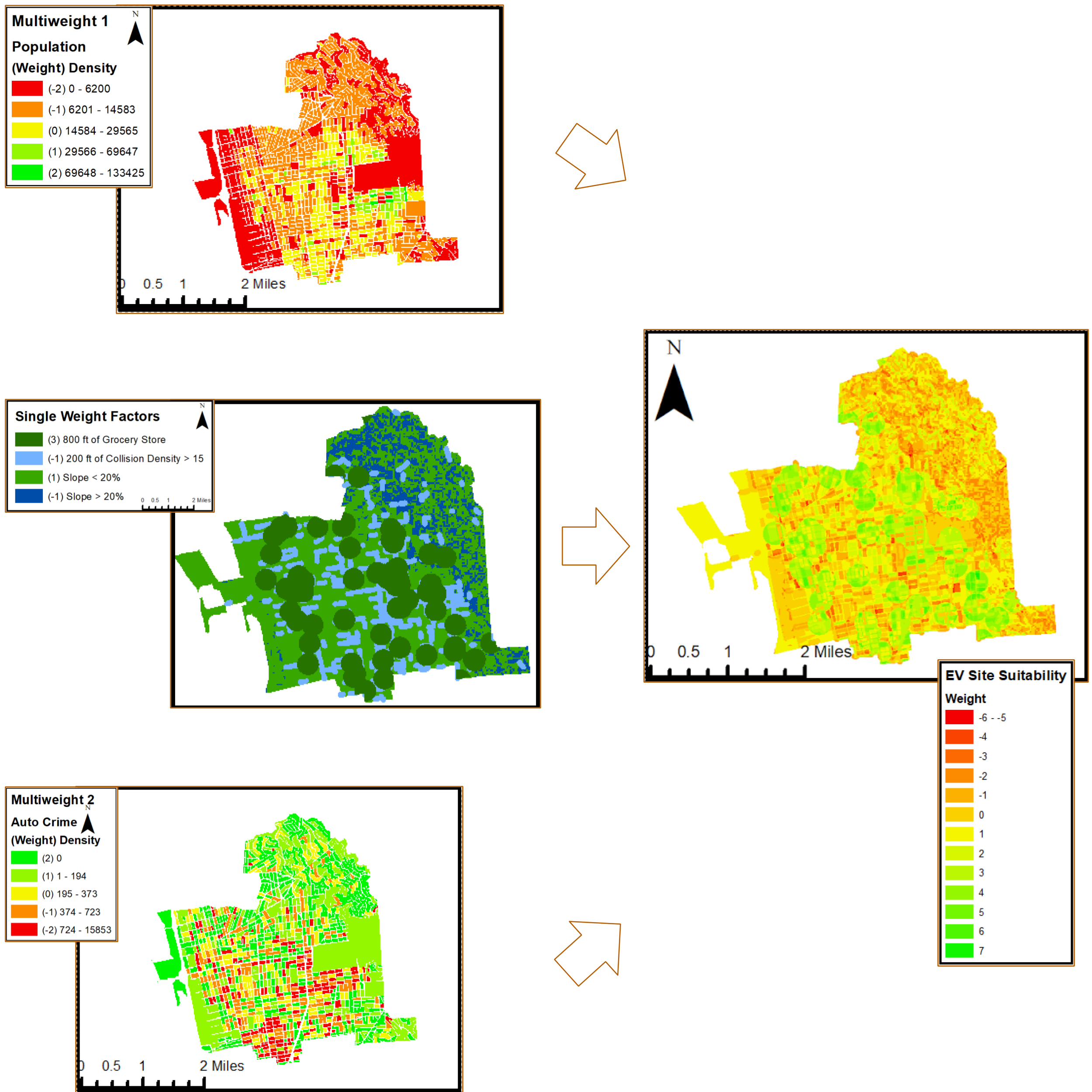

This project utilizes raster processing via Spatial Analyst to combine factors of high traffic, collision rate, and population density into a finer-grained suitability factor as well as 3D visualization. The weighting scheme for proximity to dense census blocks and high-collision-rate roads is as follows:
Dense Census Block Proximity:
High-Collision-Rate Road Proximity:
This project makes use of 3D Analyst in order to compute surface slope from a TIN model for use as an opportunity and constraint in suitability analysis.

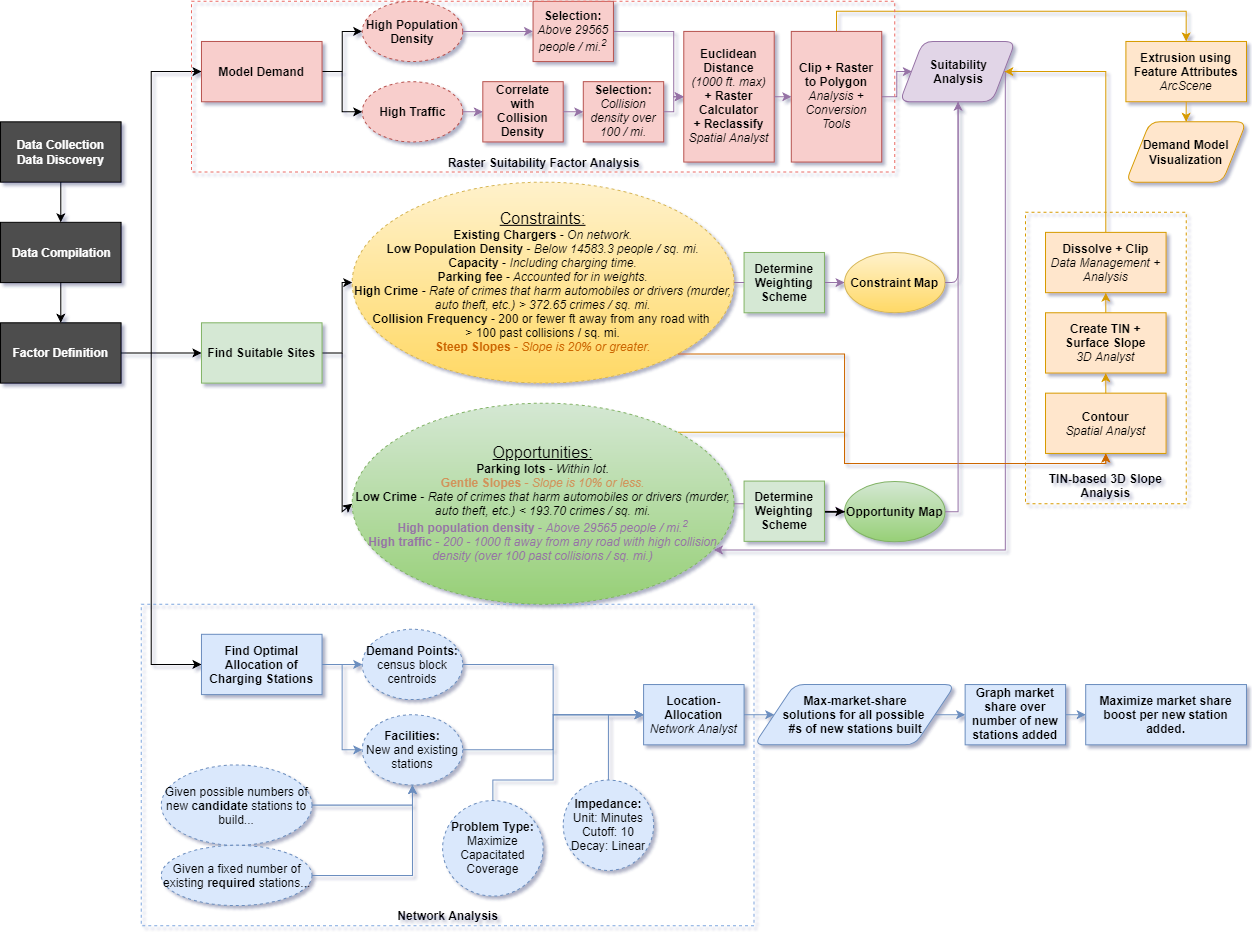

This project uses the network analysis model as the basis for optimizing the allocation of candidate points given a certain number of requested new charger locations. After running a location-allocation problem for several different numbers of requested new charger locations, total demand serviced by all (candidate + existing) chargers is graphed versus number of new charger locations added; afterwards, the optimal amount of new chargers to build is determined based on increase in demand vs number of chargers added (assume each candidate charger has equal construction cost).

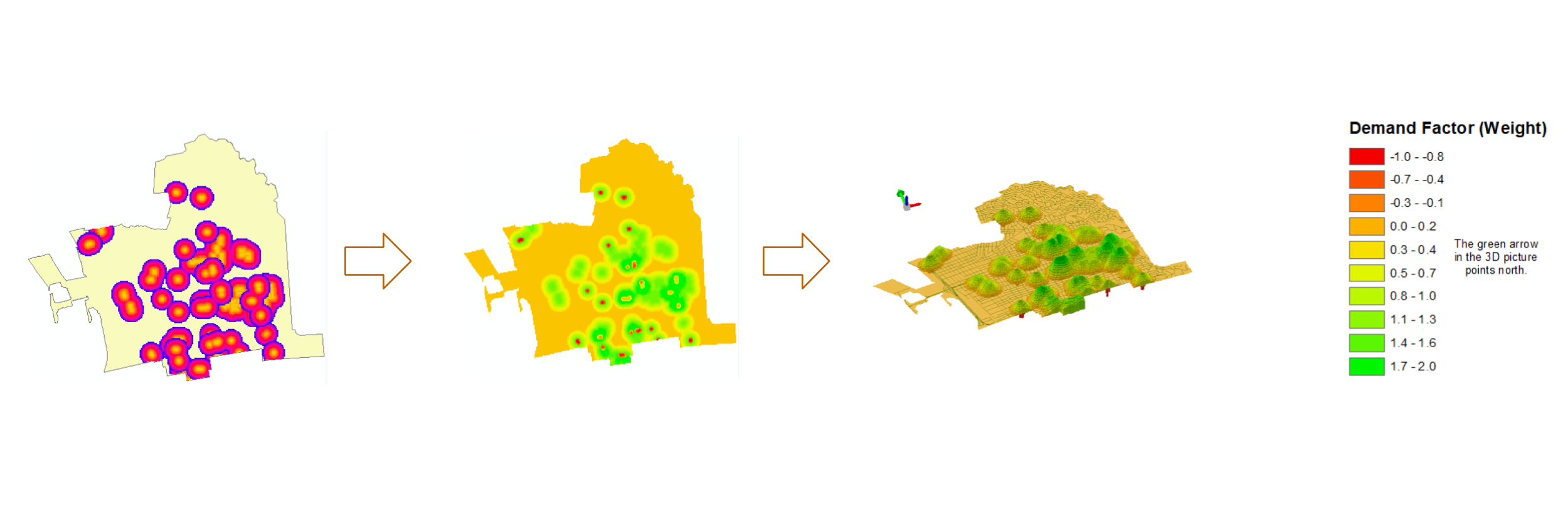

Step I: Euclidean Dist. buffers for busy roads and dense census blocks (1000 ft.).
Step II: Clip buffers to Berkeley boundary.
Step III: Reclassify both Euclidean Dist. layers.
Step IV: Weighted sum of layers via Raster Calculator.
Step V: Raster to Polygon to yield final shapefile.
Step VI: Extrude shapefile in ArcScene by weight.
Suitability Analysis Procedure
Step I: Load facilities from Google Earth Pro (KML to Layer). Populate parking facility metadata, inputting time open, parking fee, available spaces in attribute table. Calculate capacity.
Step II: Spatial Join final suitability map with candidate facilities to calculate facility weight.

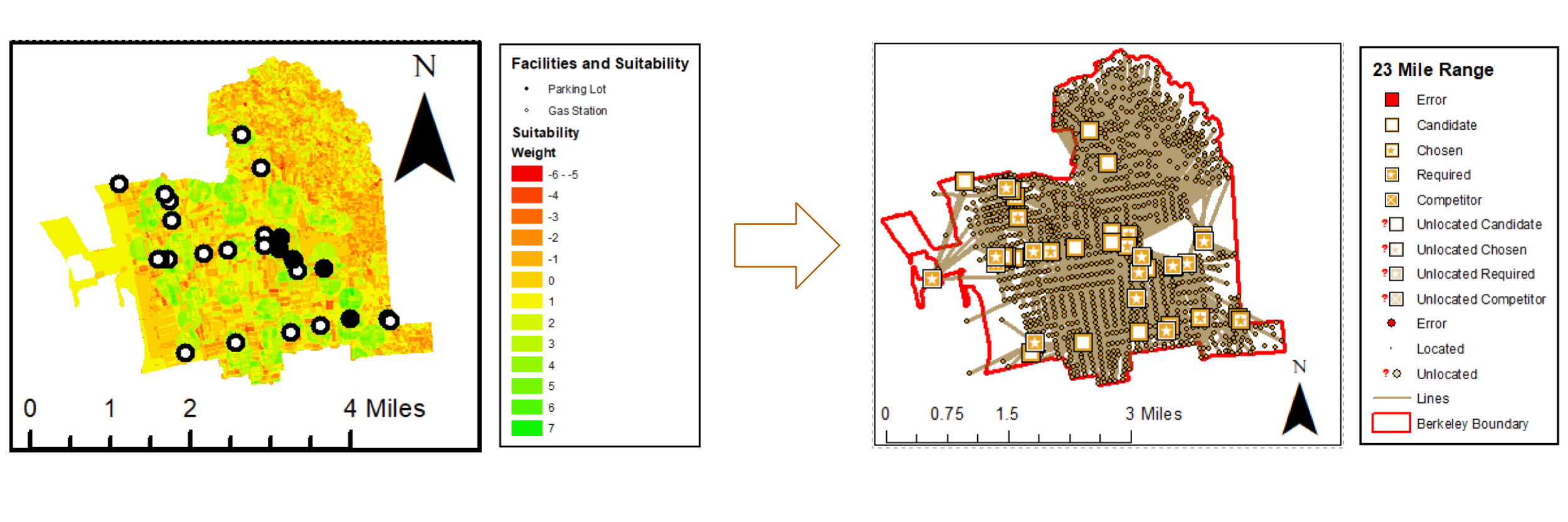

Step III: New Maximize Capacitated Coverage. Load Candidates and Required locations into Facilities with appropriate weights and capacities. Load census block centroids as demand points weighted by number of persons.
Step IV: Set impedance parameters and solve for stations.
Capacity:
Weight:

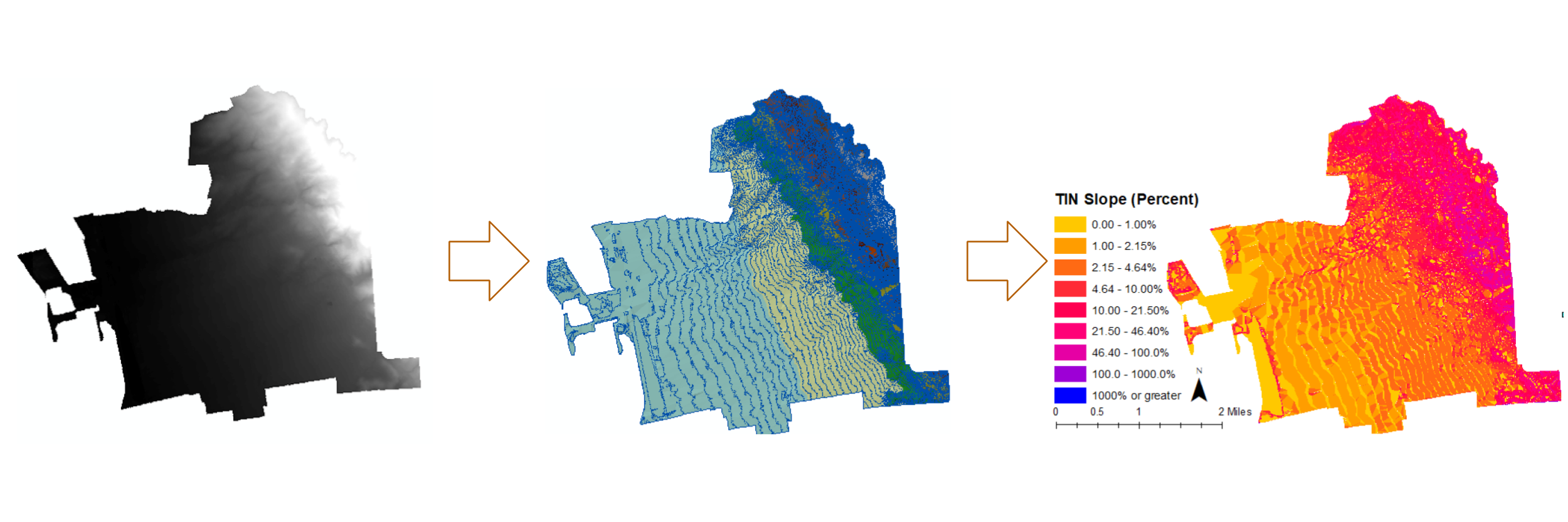

Step I: Clip DEM to Berkeley bound.
Step II: Compute Contours (10m) from DEM.
Step III: Compute TIN from Contours.
Step IV: Clip TIN to Berkeley bound.
Step V: Calculate Surface Slope from clipped TIN.
Step VI: Dissolve surface slope by slope code.

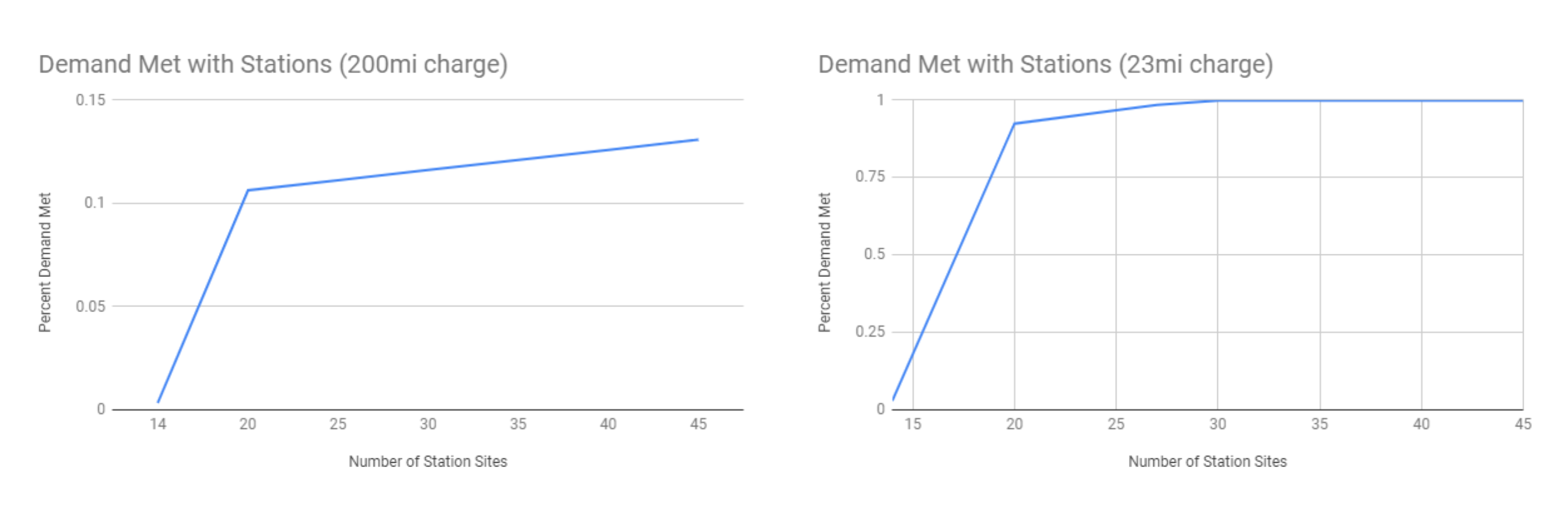

It is possible to provide charging stations for the entirety of the Berkeley population given that the population travels the average commute. Furthermore, if one considers the fact that not every individual in Berkeley necessarily owns a vehicle, providing sufficient EV charging access becomes more feasible. In terms of increase in demand met, the first few charging stations added contributed to the greatest increase in that regard, which is to be expected.
However, the model has shortcomings. EV charging demand is time dependant, i.e. less drivers will be willing to charge during the night. Drivers have other preferred locations that they want to be in close proximity to beyond grocery stores. Home charging as a factor is notably excluded completely. Drivers may not vacate the charger exactly when their desired charge range is completed.
In future edits, actual counts and locations of EV drivers would be desirable for more accurately modeling demand. Data on highly frequented locations (e.g. workplaces) would be useful in helping locate optimal new charger locations. Other locations beyond city garages could be input (not considered here as would require massive data input).
